Used 2003 SCM MB 21 | Multi Drilling Machine

Description

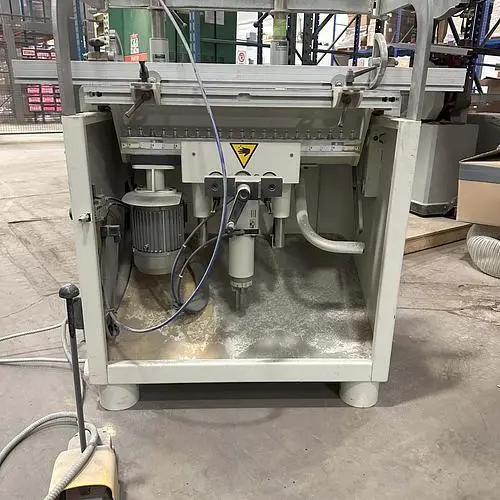

2003 SCM Minimax MB21 Multi Drilling Machine

600V 60HZ 3PH 10KA 3A,

WD 2973088090C,

COMP. R004801

Spindle speed: 2,800 revolutions per minute (RPM)

Max panel thickness: 86 millimeters (mm)

Min panel thickness: 10 mm

Max boring depth: 60 mm

Max horizontal boring height: 60 mm

Max boring head stroke: 80 mm

Max panel width under gantry: 833 mm

Motor power: 1.5 kilowatts (kW)

Pneumatic operating pressure: 6 bar

Net weight: 210 kilograms (kg)

Worktable dimensions: 905 mm by 360 mm

Worktable height: 900 mm

Max bore center-to-center: 640 mm

WEIGHT 267KG

(MACHINE DIM.) 4' X 2.3' X 5'
