Used 1997 NACHI SA130F-01 | Welding Robots

Description

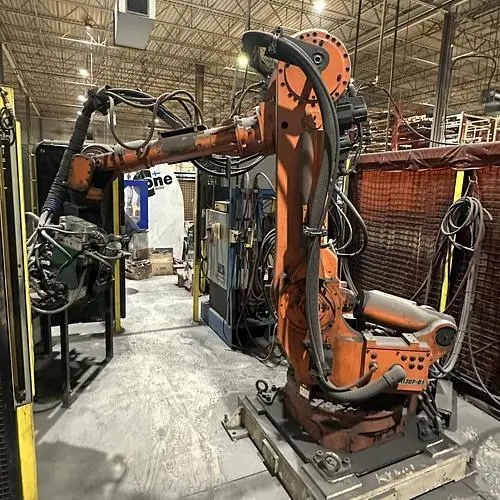

1997 NACHI SA130F-01 ARTICULATING ROBOT WITH DECOMSTAR 70 WELDING MACHINE

ROBOT IS STILL UNDER POWER.

(ARTICULATING ROBOT)
BRAND: NACHI
MODEL: NACHI SA130F-01
MFG. NO. E 79G316
MFG DATE. 1997.11
MFG R NO.23230
Type: Articulated robot
Power Req. 480 VAC 3ph
Degrees of Freedom: Typically 6 axes
Payload Capacity: Approximately 130 kg
Reach: Estimated around 2,500 mm
Repeatability: ±0.2 mm
Motion Speed:
Axis 1 (Base rotation): ~120°/s
Axis 2 (Lower arm): ~120°/s
Axis 3 (Upper arm): ~120°/s
Axis 4 (Wrist rotation): ~180°/s
Axis 5 (Wrist bend): ~180°/s
Axis 6 (Wrist twist): ~180°/s
Motion Range:
Axis 1: ±180°
Axis 2: ±90°
Axis 3: ±90°
Axis 4: ±180°
Axis 5: ±90°
Axis 6: ±180°
Mounting Options: Floor or inverted
Ambient Temp. 0 - 45*C
Weight: 1280 kgs

(CONTROLLER)
BRAND: NACHI
MODEL: ROP500 AR CONTROLLER
VOLTAGE: 480V, 8.5 KVA, 60HZ, 3PH
MFG NO. E79G316
MFG DATE. 1999.11
TYPE: AR

(WELDING MACHINE)
BRAND: DENGENSHA
MODEL: DECOMSTAR 70 RWC-70P
SERIAL NO. 5A001
MFG DATE. 1998.1
WELD POWER SOURCE VOLTAGE: 460V, 225A, 1PH
FREQUENCY: 50/60HZ
WEIGH: 80 KG
TYPE; RWC-70PCS. CE SN-70CE.225
WELDING METHOD: RESISTANCE WELDNG (DC INVERTER TYPE)
WELD CAPACITY: UP TO 70KVA
WELDING CURRENT: UP TO 20,000A
WELDING FORCE: ADJUSTABLE, 500KGF
AMBIENT TEMP. 0 - 50*C
COOLING WATER: 6L/MIN AT 30*C MAX
SOLENOID VALVE DC 24V, 1A MAX.
DUTY CYCLE: 50%
WELDING TIME: 1-99 CYCLES (1 CYCLE = 1/60 SECOND)

(WELDING COOLERS)
BERNARD & DYNAFLUX COOLERS
