2020 POWERMASTER SWB 30 HP FIRETUBE HOT WATER BOILER in Vancouver, Canada

Description

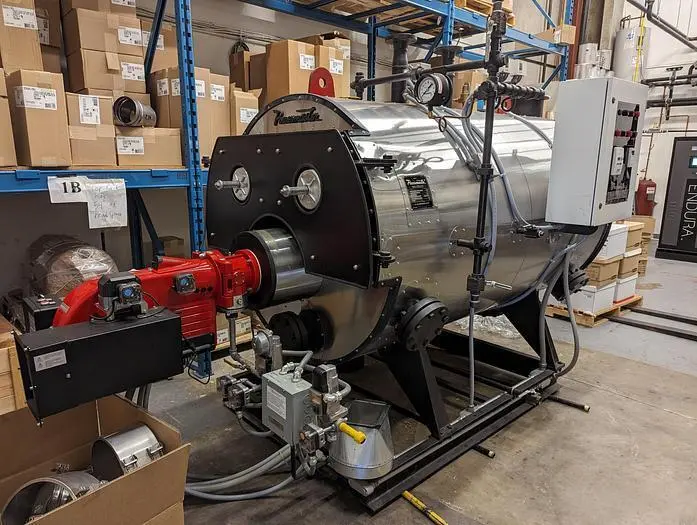

2020 POWERMASTER SWB 30 HP FIRETUBE HOT WATER BOILER WITH 2020 WEISHAUPT BURNER.

BOILER RATING: 30.0 BHP

BOILER INPUT (NATURAL GAS): 1004 FT^3/HR

BOILER OUTPUT: 1,004,000 MBH

TRIM PRESSURE: 30 PSIG, GAS PRESSURE REQ.: 5"WC TO 2 PSI,

ELECTRICAL REQ.: 575/60/3 3 AMPS, TURNDOWN 5:1.

WEIGHTS & CLEARANCES: REC. CLEARANCE: 24" SIDES/REAR, 36" FRONT

EMPTY WEIGHT: 4154 LBS

FLOODED WEIGHT: 7306 LBS.

CONNECTION SIZES: GAS INLET: 0.75",

RELIEF VALVE: 0.75" NPT, HW INLET & OUTLET: 2.5"

NPT, STACK 9".

FITTED & BEP TESTED TRIM: C/W 30' OF VENTING, C/W ISOLATION GATE VALVES, SIEMENS VENTLESS GAS TRAIN.

STANDARD BOILER FEATURES: PARALLEL POSITIONING COMBUSTION PLATFORM,

MAXIMUM WATER TEMP. OF 250F,

EASY TO SERVICE SWING-OUT BURNER, LESS THAN 120 RUN-TIME HOURS.

2020 WEISHAUPT WM-G10/2-A, ZM-LN (S/N: 40589041) NATURAL GAS WM-SERIES MONARCH BURNER. 1000 BTU/CU-FT, 250-2150 MBTUH, INLET PRESSURE: 2 PSI MAX, MANIFOLD PRESSURE: 4.28" WC, MOTOR 1.34HP, 575V, 60HZ, 3PH, 1.7FLA.

HARDLY USED UNIT. RUNS WELL.
