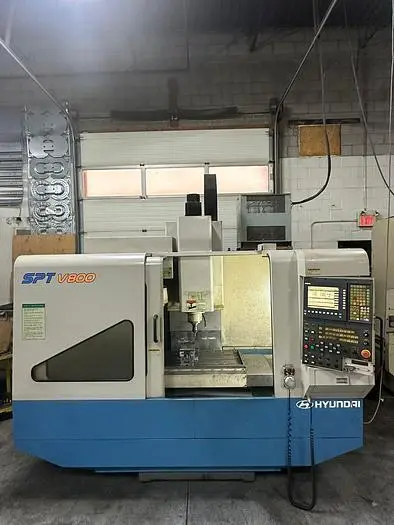

2000 Hyundai SPT-V800 Vertical Machining Center in Toronto, Canada

Description

2000 Hyundai SPT-V800 Vertical Machining Center

Size of table working surface of table: 950 x 460 mm

Maximum load of table: 800 kg

Turnover Amount

Turnover of X-axis: 800 mm

Turnover of Y-axis: 460 mm

Turnover of Z-axis: 620 mm

Distance from top side of table to the spindle: 100 mm

Main Spindle

Rotation velocity of main spindle: 75-10,000 rpm

Main Spindle TAPER: ISO No 40

Feed Speed

Rapid feed speed (X,Y,Z): 30/30/24 m/min

Cutting feed rate: 8 m/min

ATC

Tool shank type: MAS No 40/BT40

The number of tool: 20 EA

Max cutter radius when excepting neighbor tool: Ф 100/Ф150 mm

Tool clamp Power: 1200 kg

Tool selection type: Designation of Number

Max tool length: 300 mm

Max tool weight: 8 kg

Tool replacement time (T-T / C-C): 5.2/7.2 Sec

MOTOR

Main spindle motor (30min/continuous): 16(21.7) / 12(16) kW(HP)

Motor for feed shaft (X, Y / Z): 5/8.5 kW

Coolant Motor: 0.9 / 0.25 kW

Required Power

Power: 220 V

Capacity of Gross capacity: 35 kVA

Air pressure: 5 kg/cm

Control: SIEMENS 810D

Size of M/C

Height of Machine: 2750 mm

Required ground Area: 3000 x 3000 mm

Weight of M/C: 5000 kg

Capacity of Tank

Tank for cutting oil: 450 ℓ

Lubricating Tank: 3.4 ℓ
