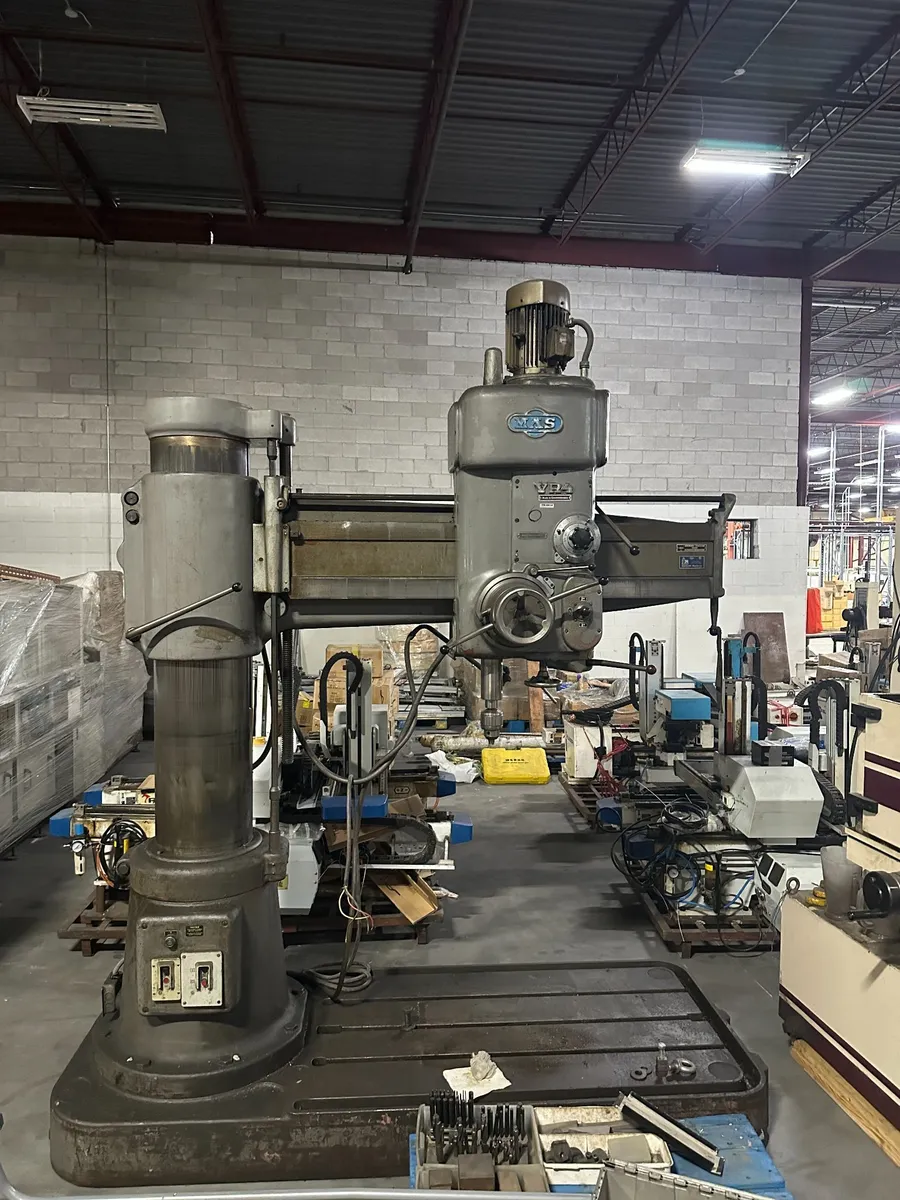

1971 MAS VR4 50MM RADIAL ARM DRILL

Description

1971 MAS VR4 50MM RADIAL ARM DRILL

Brand: MAS
Model: VR4
Serial no. 9363
MFG Date: 1971

Power: 575V 60HZ 3PH
1.5KW 2.1A
17.20 OT/MIN

General:

Type: Radial Drilling Machine
Drilling Capacity: 50mm
Arm Length: 1470mm
Spindle Diameter: 75 mm
Spindle Speeds: Up to 2000 rpm
Spindle Taper: MT4
Spindle Feed Travel: 310 mm
Spindle Feed Rate of Travel: 1.58 mm/rev
Vertical Travel of Arm: 675 mm
Cube Table Size: N/A
Tilting Angle of Table: 0 to 90 degrees
Clamping Type: Manual
Radial arm length(total) :78''
T-slot floor: 55'' X 35''

MACHINE DIM. 36'' X 88'' X 116''
