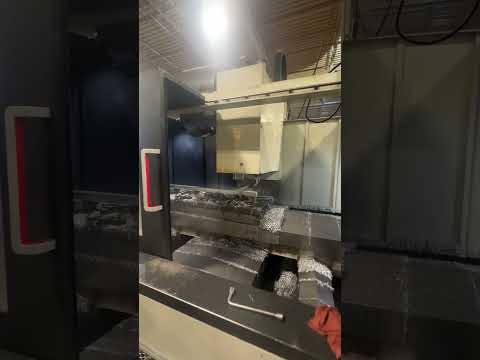

2013 SHENYANG VMC 2100B VERTICAL MACHINING CENTER WITH FANUC SERIES Oi-MD CONTROL

Description

2013 SHENYANG VMC 2100B VERTICAL MACHINING CENTER WITH FANUC SERIES Oi-MD CONTROL

Mfg: Shenyang machine tool co.
Model: VMC 2100B
Serial no. B3300008
Mfg date: 2013

Power: 220V 60HZ 3PH
60A 5KA

Work Hours/run time: ~2051 hrs
Parts Count:~8389

Worktable
Dimensions: 2200 mm × 800 mm
T-slot Sizes: 22 mm width, 5 slots
Max Load Capacity: 3000 kg

Travel Range
X-Axis Travel: 2100 mm
Y-Axis Travel: 800 mm
Z-Axis Travel: 800 mm
Spindle Nose to Worktable: 200–1000 mm
Spindle centerline to the guideway of the column: 940mm

Spindle
Taper: BT50
Speed: Up to 6000 rpm
Main Motor Power: 15/18.5 kW
Main Motor Torque: 95.4 Nm

Feed Rates
Rapid Traverse (X/Y/Z): 18 m/min
Feed Speed: Up to 10 m/min

Tool Magazine
Type: Mechanical Arm
Capacity: 20 Tools
Tool Change Time: 3.5 sec

Accuracy
Positioning Accuracy: ±0.008 mm/300 mm
Repeatability: ±0.003 mm

Air Requirements
Air Supply Pressure: 0.5–0.7 Mpa

CNC System
FANUC SERIES Oi-MD Control

Standard Accessories
Three-axis Ball Screw
Linear & Box Guideways
Stainless-steel Guideway Protection
Full Enclosure
Chip Conveyors
Lubrication System
Pneumatic System
Air Gun
Heat Exchanger
Ethernet

weight: 18000kg
MACHINE DIMENSIONS: 208'' X 137.8"" X 154''
