2020 LOYALMAK 10'x20' LPL30/60 PLASMA AND FLAME CUTTER WITH HYPERTHERM XPR 300 SYSTEM
Have one to sell?
ConditionUsed
1 available

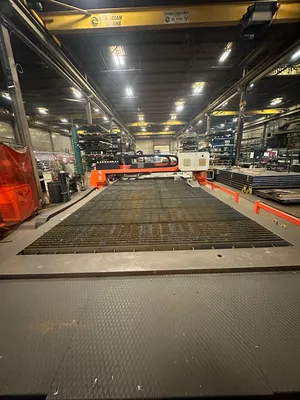

2020 LOYALMAK 10'x20' LPL30/60 PLASMA CUTTER AND FLAME CUTTER WITH HYPERTHERM XPR 300 SYSTEM
Manufacturer: Loyalmak
Model: PROCUT LPL-30/60
Serial no. 184
Mfg Date: 2020
MACHINE IS UNDER POWER AND IN EXCELLENT WORKING CONDITION.
Power: 600V 60HZ 3PH
Motor: 5kW
General
LOYALMAK LPL 30/60
Table Width: 3250 mm
Table Length: 6300 mm
Torch Height: 170 mm
Width: 4500 mm
Length: 7500 mm
Height: 2100 mm
Table Height: 800 mm
X Axis: 3200 mm
Y Axis: 6200 mm
Axis positioning accuracy ± 0,02 mm
Axis positioning seed max. 20 m/min
Hi-Def Plasma Cutter
Tanaka Oxy-Torch
Hypertherm Edge Connect CNC
Hypertherm Plasma Power Source
19,5'' Touch Screen
Torch Collision Protection System
Automatic Torch Height Control
Remote assistance
Laser pointer for plate alignment
Automatic dust and fume extraction system
V W I Gas Console

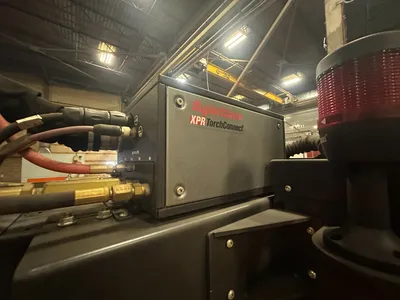

Hypertherm XPR300
Serial no. XPR300-003267
P/N: 078629
Max Open-Circuit Voltage: 360 VDC
Max Output Current: 300 A
Max Output Power: 66.5 kW
Output Voltage Range: 50–210 VDC
5A/82V - 300A/160V
60HZ 3PH
Arc Voltage @ 100% Duty Cycle: 210 V
Duty Cycle Rating: 100% @ 66.5 kW @ 40°C (104°F)
Power Factor: 0.98 @ 66.5 kW
Cutting Capacities
Mild Steel:
Production Pierce (Air Shield Gas): 45 mm (1-3/4")
Enhanced Pierce (Argon-Assist): 50 mm (2")
Severance: 80 mm (3-1/8")
Stainless Steel:
Pierce: 38 mm (1-1/2")
Severance: 75 mm (3")
Aluminum:
Pierce: 38 mm (1-1/2")
Severance: 50 mm (2")
Extraction System:
Loyalmak Pulse Jet
Jet filter 8000 m3
Donaldson cartridges
Optioned with:
1x Tanaka Oxy Torch
Manual bevel device for Plasma and Oxy torch
ProNest 2021 Advanced
True Hole Technology
Skeleton Cut-up
Common Line Cutting
Chain & Bridge Cutting

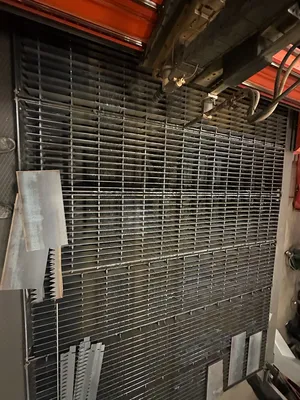

*Table-top replaced March 18, 2025*
WEIGHT: 8700 kg
XPR300 DIMENSIONS: 52" X 36" 52"
FUME EXTRACTOR DIMENSIONS: 94" X 84" X 77"
MACHINE DIMENSIONS: 192" X 310" X 105"
